Zomato: Real-time ML

• Real-time Machine Learning Inference Platform at Zomato

What is Machine Learning?

• Core Concept: Given an input (e.g., an image), extract features (e.g., RGB values of pixels), pass these features to a classification algorithm (a “black box” that has learned from past data, like a linear combination or more complex models like XGBoost), which then produces an output (e.g., “car” or “not car”).

• Feature Types:

  • Real-time Features: Computed based on immediate events. Example: For Zomato recommendations, the last restaurant a user clicked on (e.g., if Haldiram was clicked, next might be Bikanerwala, both being “chaat” places).

  • Static Features: Computed on a historical basis. Example: Restaurant attributes like cuisine type or dishes served.

• Model Variety: Different algorithms can be used, such as regression or tree-based models.

ML @Zomato (Use Cases)

• Predicting Kitchen Preparation Time (KPT): Estimate how long a restaurant will take to prepare an order given the dishes. Crucial for optimizing rider dispatch (don’t send rider too early if prep time is long).

• Predicting Rider Assignment Time: Estimate time to find and assign a rider, especially during peak hours with high order volume and rider density.

• Personalization and Recommendations: Show relevant restaurants to users when they open the app.

• Fraud Detection: Identify fraudulent activities by users, merchants, or riders.

• Photo Classification: Classify user-uploaded photos as food, menu, or ambiance.

• Rider Allocation: (Implicitly related to KPT and Rider Assignment Time) Efficiently assigning riders to orders.

Challenges (Pre-Platform)

• Dependency on Engineers for Deployment: Data scientists created models, but relied on engineers for production deployment, especially for real-time inference.

• No Standard Workflows: Lack of standardized processes for model deployment.

• Inability for Data Scientists to Push Features: Data scientists performed offline analysis and feature construction, but couldn’t easily push or manage features for production.

• No Platform for Real-Time Feature Computation: Difficult to compute and use features in real-time at scale.

• Many One-Off Production Systems: Ad-hoc solutions for serving, leading to inconsistencies (e.g., some using Redis, some MySQL for feature storage).

Requirements (for the New Platform)

1. Enable Data Scientists: Allow them to easily build and deploy ML models at scale across the company (autonomy). DS are not expected to be full-fledged software engineers.

2. Platform for Real-Time and Static Feature Computation & Pushing: Data scientists should be able to directly push static features.

3. Ability to Store and Version Models: A “GitHub for models” for auditing and versioning.

4. Low Latency Real-Time Inference: Predictions should take less than 50ms (P99).

5. Fast Time to Production: Model deployment should be less than a week.

Case Study: KPT Prediction

• Model: In-house XGBoost-based model.

• Input Features:

  • Static Features: Historical KPT for the specific restaurant and time slot.

  • Real-Time Features: Number of currently running/pending orders at that restaurant at that specific point in time.

• Goal: Predict how long a restaurant will take to prepare a given order based on items, cost, etc.

Proposed Architecture (and its Components)

1. Model Manager (MLFlow):

   • Purpose: Platform for data scientists to develop, log, and manage their models independently.

   • Technology Choice: Evaluated MLFlow and Kubeflow. Chose MLFlow because it was very easy to set up (speaker set it up in ~1 hour), whereas Kubeflow (Kubernetes-based) had a steeper learning curve as the team lacked prior extensive Kubernetes experience.

   • Functionality: Allows versioning of models (e.g., KPT model v1, v2, v3, with v3 in production).

2. Real-Time Feature Computation (Apache Flink):

   • Need: A stream processing framework to calculate real-time features (like running orders at a restaurant) by listening to order-level events (from order service/backend).

   • Technology Evaluation: Spark Streaming, Kafka Streams, and Flink.

   • Technology Choice (Flink): Chosen due to its strong community, ease of setup, and crucial job-level isolation.

   • Job-Level Isolation Importance: With hundreds of models and tens of jobs per model, one job failure (e.g., KPT job) must not affect others (e.g., rider assignment job).

3. Feature Store (Real-Time & Static):

   • Real-Time Feature Store (AWS ElastiCache backed by Clustered Redis):

     • Requirements: Store features produced by Flink, easily scalable for high write and read throughput, eventual consistency is acceptable (data can reflect after 5-10 seconds).

     • Technology Choice (ElastiCache/Redis):

       • Supports adding shards for write scaling and read replicas for read scaling.

       • Managed service providing automatic failovers (high availability).

       • Very low read/write latency.

       • Supports TTL for features (many real-time features are short-lived, e.g., 2-5 mins).

     • Scale Example (KPT): ~10 features/output * 100k+ restaurants every minute = ~1 million writes/minute. Reads can be up to 100k RPM from users building carts.

   • Static Feature Store (Cassandra):

     • Requirements: Store static features (e.g., historical KPT for a restaurant/time slot), key-value access, eventual consistency, high read throughput.

     • Technology Evaluation: Redis, Cassandra, DynamoDB.

     • Technology Choice (Cassandra): Chosen for cost-effectiveness and the team’s prior experience using it (over Redis which is in-memory and more expensive for this type of static data).

4. Model Inference Platform (AWS SageMaker):

   • Purpose: Deploy models for real-time inference.

   • Technology Evaluation: Elastic Beanstalk, ECS, AWS SageMaker.

   • Technology Choice (SageMaker):

     • Very easy to set up (model up and running in a day).

     • Provides direct integration with MLFlow (can deploy models from MLFlow to SageMaker with a single command).

     • Handles inbuilt auto-scaling, logging, and monitoring.

   • Monitoring: Grafana dashboards show invocations and model latency for deployed SageMaker endpoints.

5. ML Gateway (In-house Go service - “Feature Enricher”):

   • Purpose: A system to stitch everything together for real-time inference. Acts as a central point for applications to call for predictions.

   • Functionality:

     • Receives predict API call from an application.

     • Fetches necessary features from the Feature Store (both real-time Redis and static Cassandra).

     • Enriches the request with these features.

     • Sends the enriched request to AWS SageMaker for inference.

     • Gets the inference result and sends it back to the application.

   • Implementation: KPT Plan (YAML configuration) defines the workflow for the ML Gateway (fetch features, get KPT prediction from SageMaker, publish).

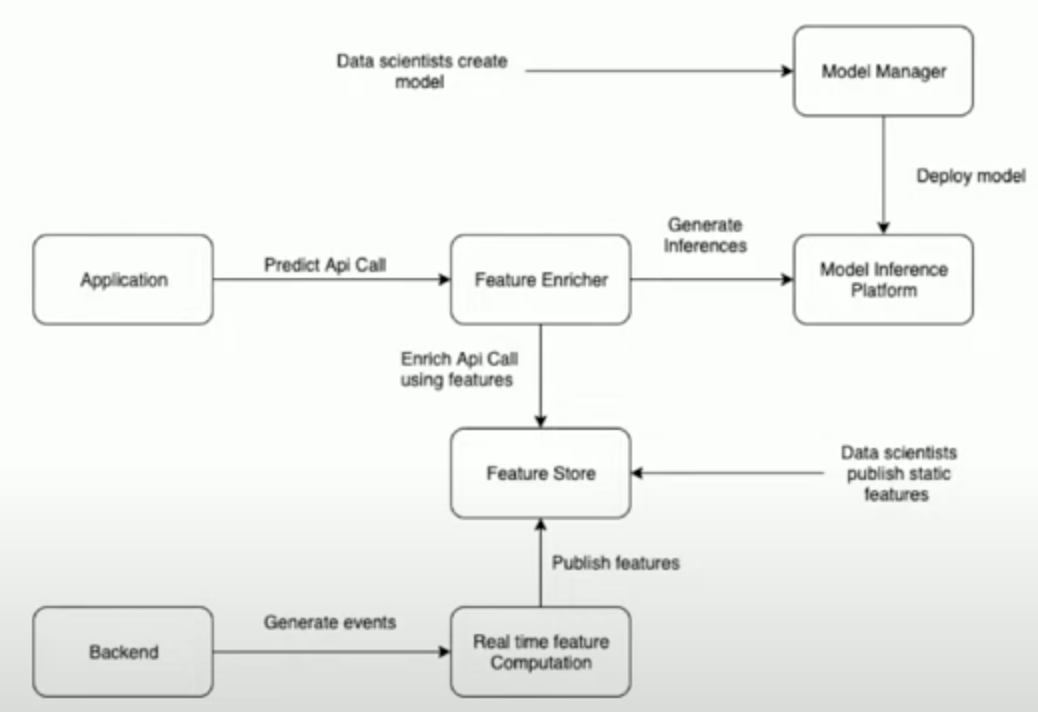

Final Architecture Diagram:

• Data Scientist Workflow: Creates models and logs them in MLFlow.

• Deployment: Engineers deploy models from MLFlow to AWS SageMaker.

• Real-Time Path:

  • Application calls ML Gateway.

  • ML Gateway enriches API call with features from Feature Store.

  • ML Gateway calls SageMaker using enriched features.

  • SageMaker returns inference to ML Gateway, then to Application.

• Feature Generation Path:

  • Backend generates events to Flink via Kafka.

  • Flink performs real-time feature computation.

  • Flink publishes real-time features to the Feature Store (Redis) via Kafka.

  • Data scientists publish static features to the Feature Store (Cassandra) via Kafka (or other batch processes).

Future Work

• Ability to shadow models: Test new models (e.g., KPT V2) on real traffic via ML Gateway before taking them live, without impacting users.

• Archiving real-time features to S3: Store features from Redis/Feature Store to S3 for model retraining.

• Ability to retrain models automatically: Schedule model retraining at a fixed frequency.

• Tracking model performance online: Continuously monitor model performance in production.
